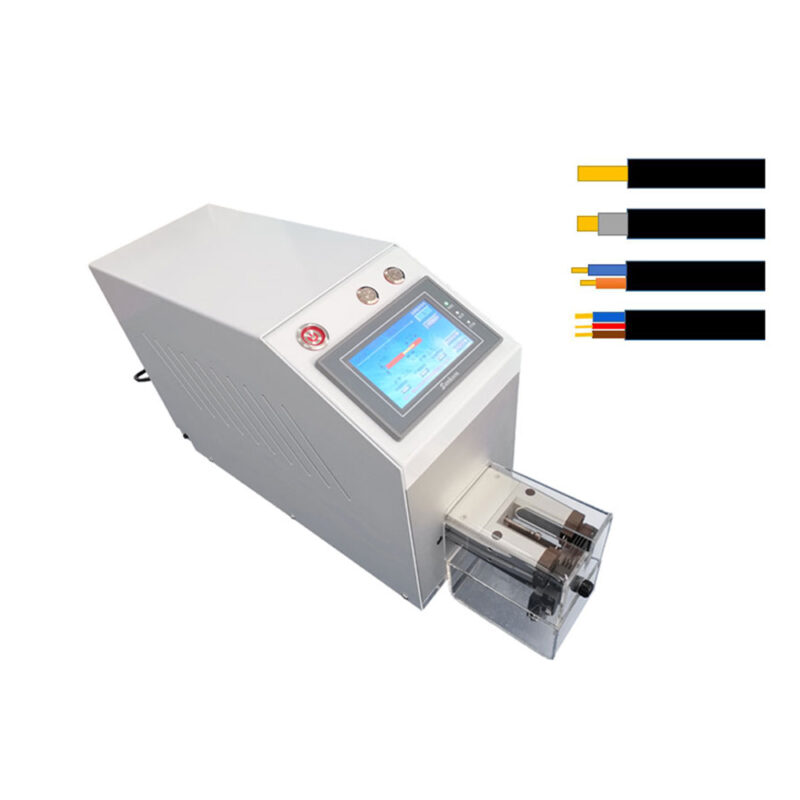

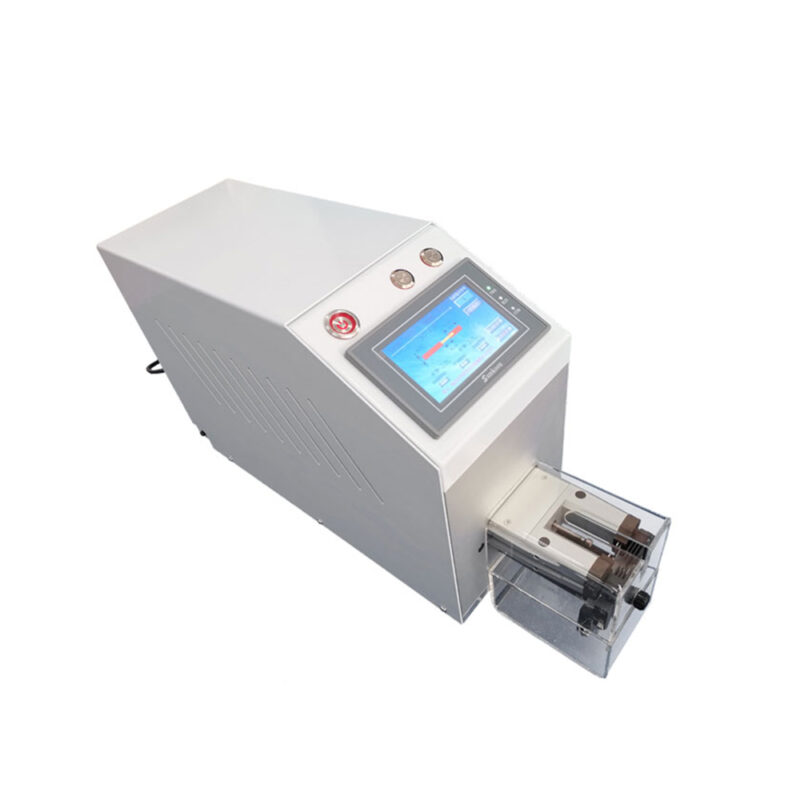

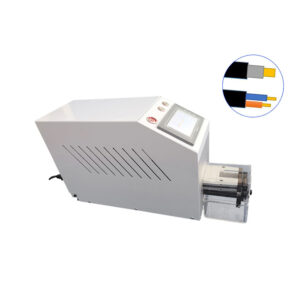

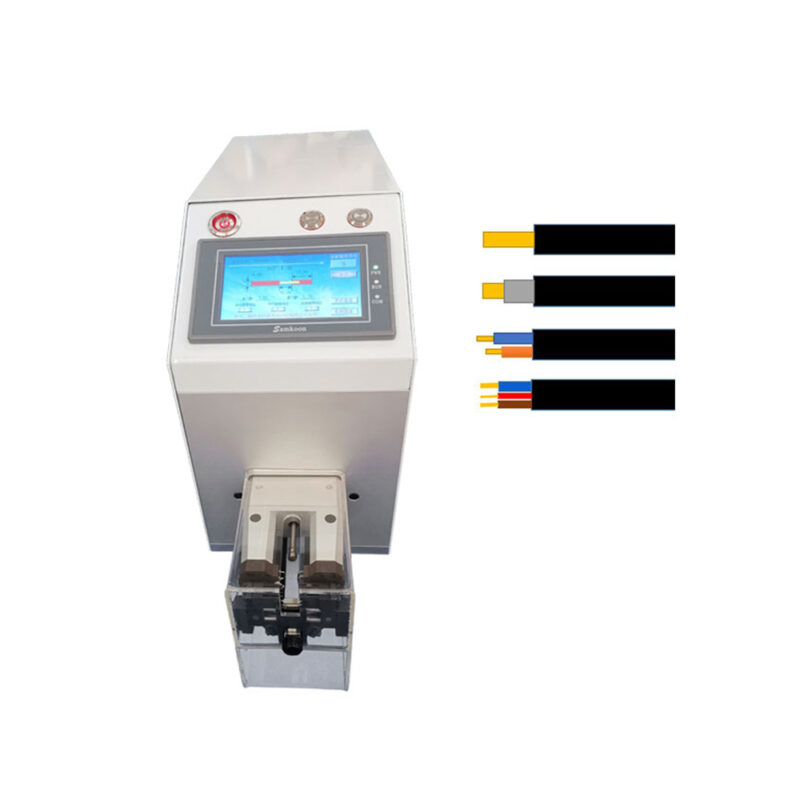

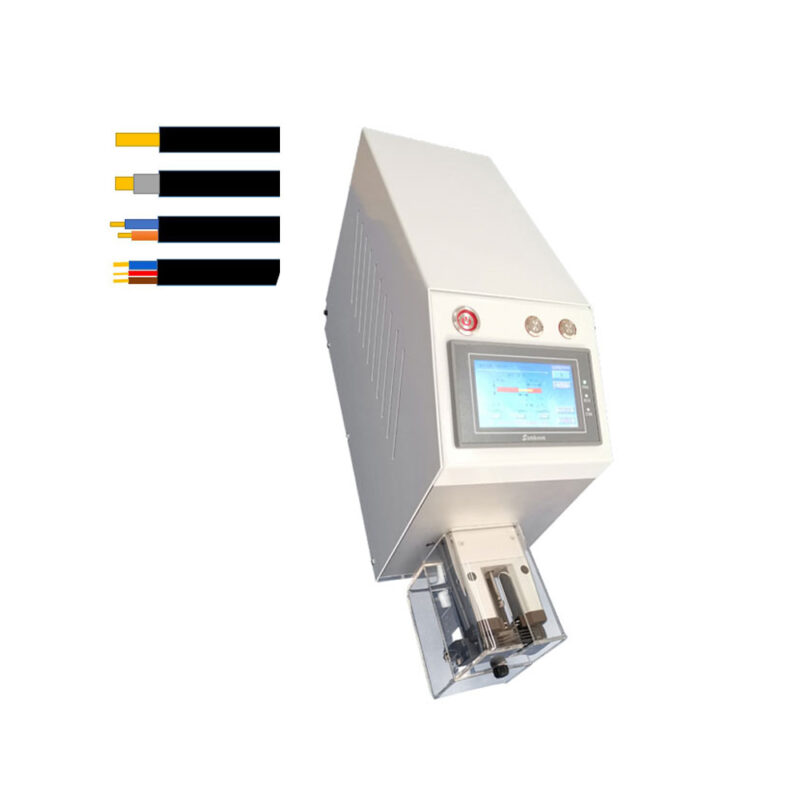

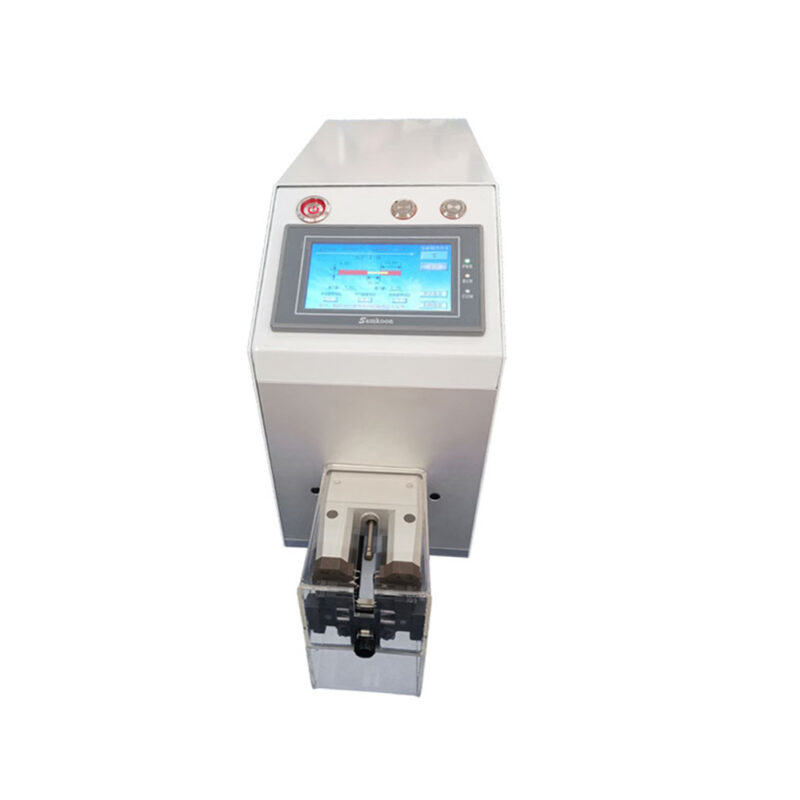

This high precision electric wire stripping machine can handle single wire stripping,wire multi-layer stripping,wire shortening stripping,multi-core wire stripping,etc.
Features:
- The new creative pure electric wire stripping machine,all parameters are set by computer,high precision and easy to debug.
- Precise positioning:The stripping head has high precision,no need for a foot switch to trigger,safe and worry-free.

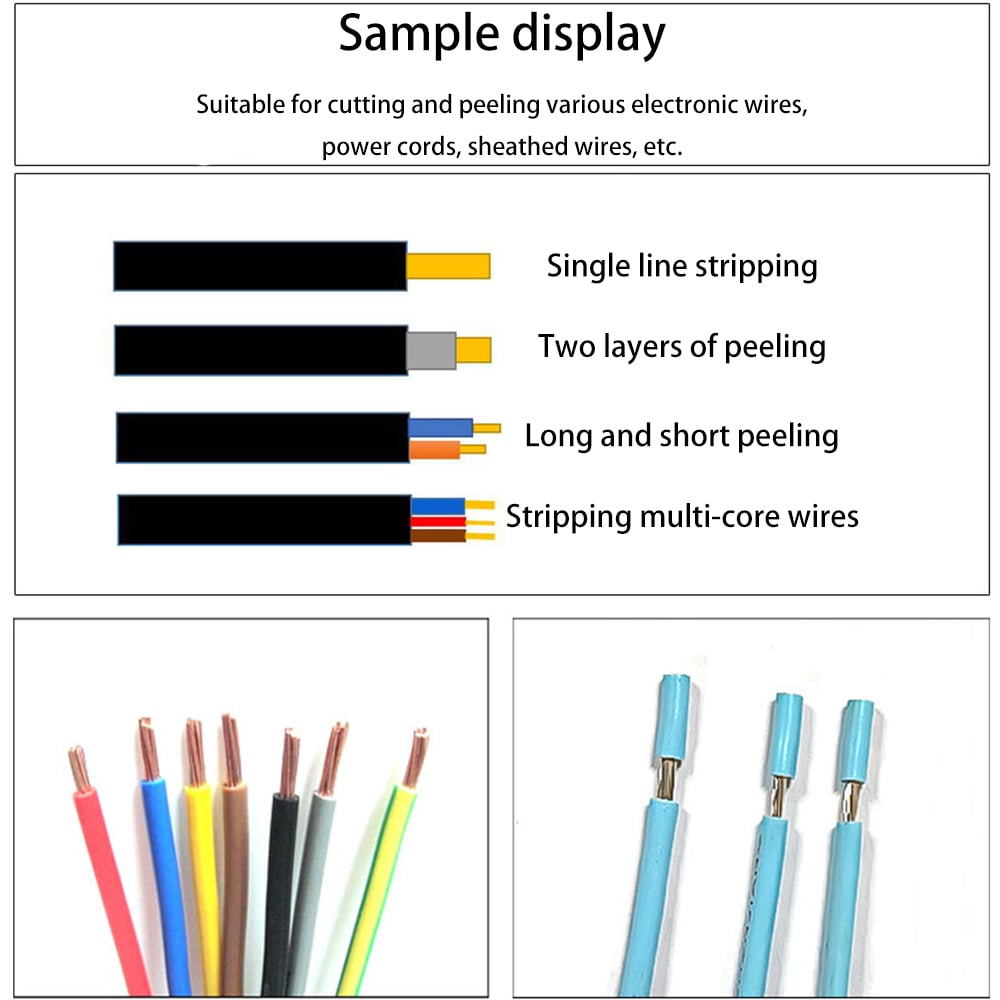

- A variety of processing modes to meet different types of wire processing:Half-stripping,full stripping,2-layer stripping,multi-core cable stripping mode.
- The 90-degree V-shaped blades design is extremely versatile to process different wires without changing the blades.
- The clamping jaws and the blades adopt the principle of translation to ensure that the center height remains the same when processing different wire diameters.
- Up to 30 sets of processing parameters can be stored,which greatly saves adjustment time and material waste.
Technical Data
| Parameters | Specification |
| Model | SR-P003 |
| Wire outer diameter | Max 9.6mm |
| Voltage | AC220V/110V 50/60HZ |
| Processing range | AWG30-AWG4 (0.04-20mm²) |
| Stripping length | 1-40mm |
| Efficiency | 1800-2000/H (Depends on manual speed) |
| Net weight | 20kg |
| Machine size | 500*170*300 mm |
| Functions | Half-stripping,full stripping,2-layer stripping,multi-core cable stripping mode |
| Adjusting accuracy | 0.05 mm |
