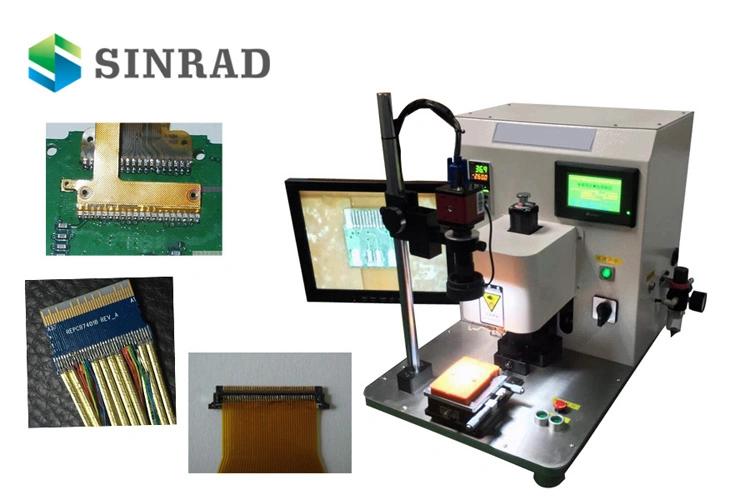

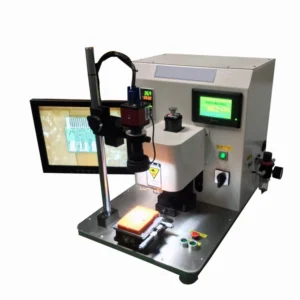

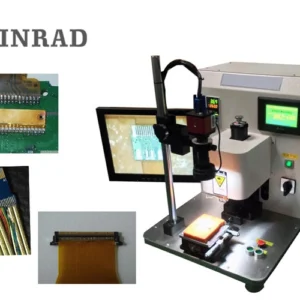

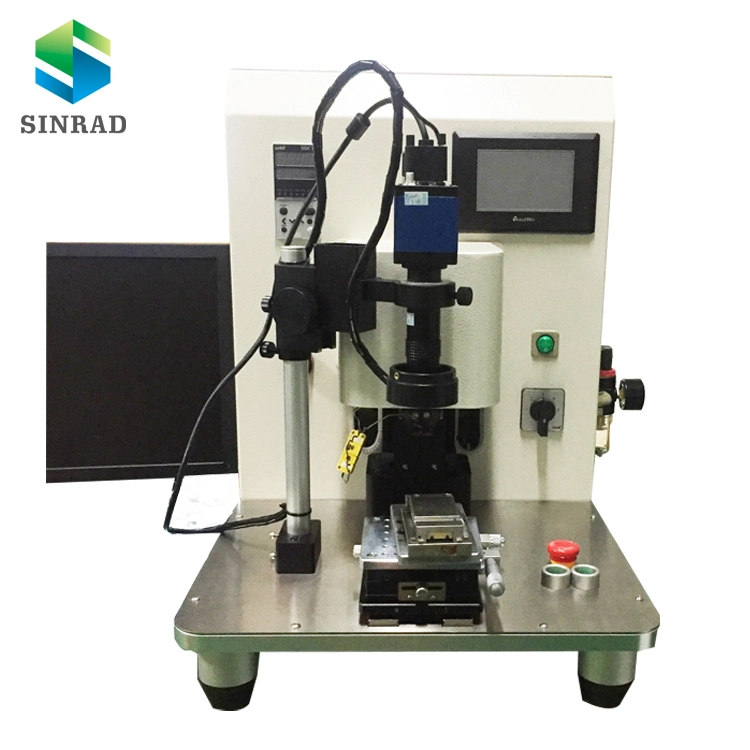

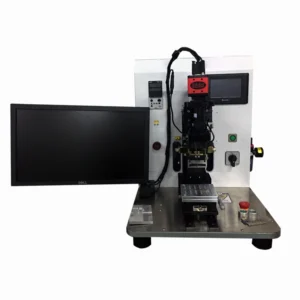

Semi-Auto PCB Solder Pulse Heating Soldering Machine with CCD Display Servo Motor
Features:

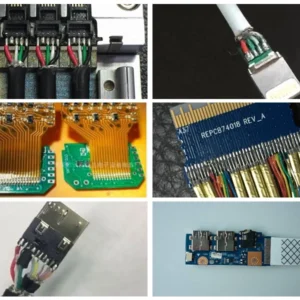

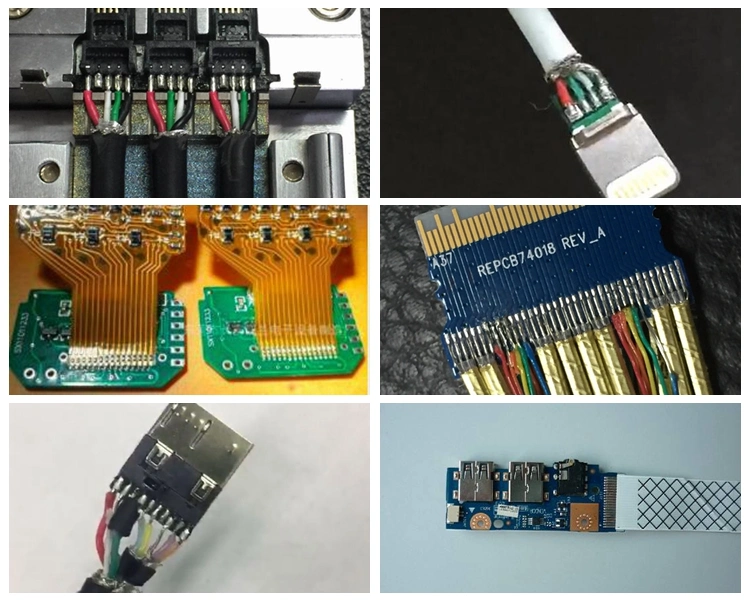

High precision soldering machine.Apply to TAB, TCP soldering, and FPC, FFC and PCB soldering
High speed cable, QSFP, QSFP+, MINI SAS,high precision cable
Technical Data
| Parameter | Specification |
|---|---|
| Model | MC301 |
| Pressure | 0.02-0.8MPa adjustable |
| Hold Time | 1-100S |
| Preheat Time | 1-25/section |
| Working Size | 150*200mm |
| Working Pressure | 0.4-0.8MPa |
| Temperature Range | 0℃-450℃ |
| Temperature Accuracy | ±3℃ |
| Temperature Quantity and Range | Part 8 (including start/separation temperature) |
| Working Efficiency | 400-600pcs/hour |
| Working Environment | 0-40℃, humidity 20%-95% (non-condensing) |
| Machine Dimensions (L*W*H) | 400mm (L) x 450mm (W) x 510mm (H) |
| Machine Weight | 85Kg |
