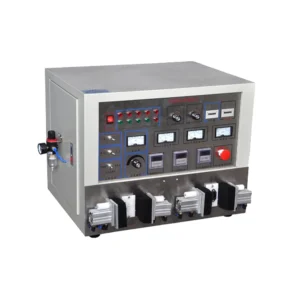

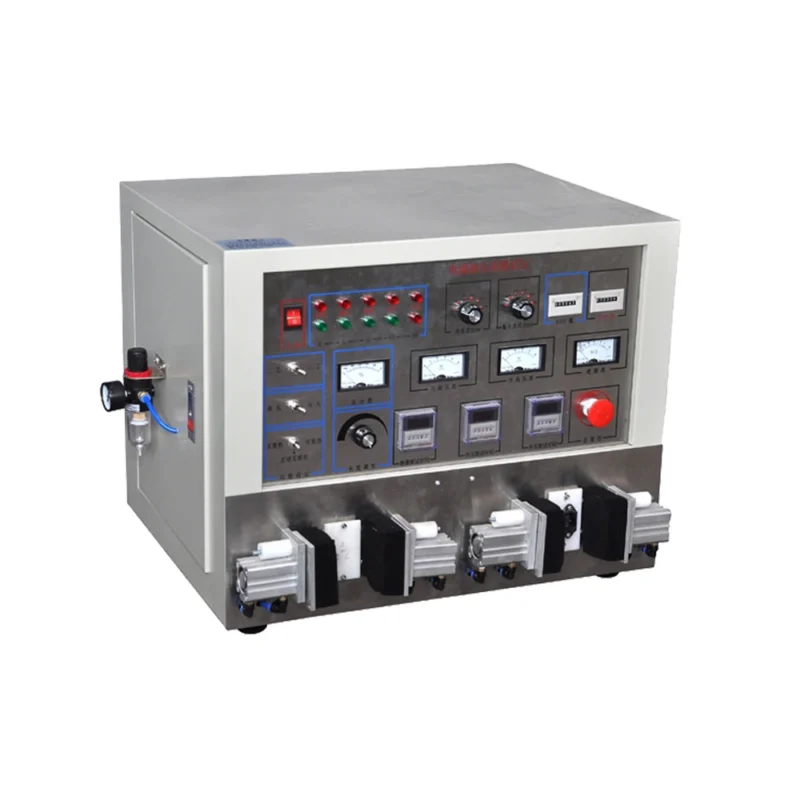

Hot sale power cord cable tester machine plug testing machine automatic for power cable.
Features:
- The system provides Chinese/English free switching interface.
- Boot self-diagnosis, self-correction
- The system has automatic scanning and automatic point finding function
- The system provides advanced instantaneous short circuit and continuity test
- Can be used for wire unilateral, standard, multi-segment and point test function test
- Maximum AC1000V, DC1500V test voltage
- The system adopts advanced four-wire measurement, and the short-circuit judgment value is minimum 200Ω.
- Provide LCR meter module for precision measurement analysis
- Bad judgment is more accurate, and the test speed is doubled compared with traditional similar products.
- Provide 320*240 full Chinese/English large screen graphic LCD display
- Linear conduction and safety and component testing are available
- Fully programmable continuous test
- Provide a variety of interfaces for a variety of different applications
- The system provides statistics and printing functions, and provides statistical analysis of good and bad products.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SR-221 |
| Equiped with | 2 fixtures |
| Polarity | Break over, short circuit, open circuit, dislocation |
| Insulation voltage | DC 500V |
| Insulation resistance | 2, 5, 20, 50, 100, 200mQ six level |
| Internal high voltage | AC 0~5KV Continuously adjustable |
| Leakage current | 0.5, 1.0, 1.5,2.0, 3.0, 5.0, 10, 20mA |
| External high voltage | AC 0~5KV, 1.5mA Continuously adjustable |
| Wire sensitivity | ≥ 10pF |
| Test time | Insulation, internal and external high voltage time can be set arbitrarily. |
| Air source | ≤ 4 kgf/cm² |
| Machine Dimensions(L *W*H) | 730*530*500mm |
| Machine Weight | 68KG |

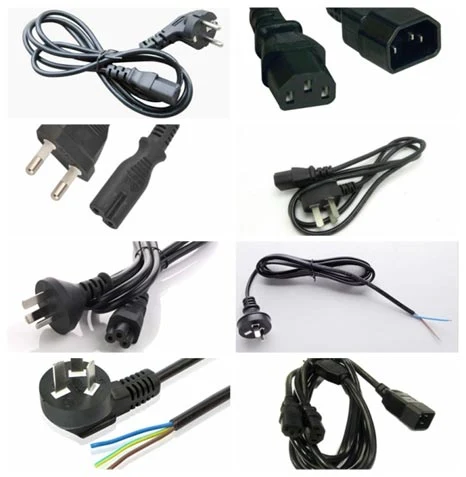

| Available plug | Suitable for All kinds of power plug by using different fixtures. |
