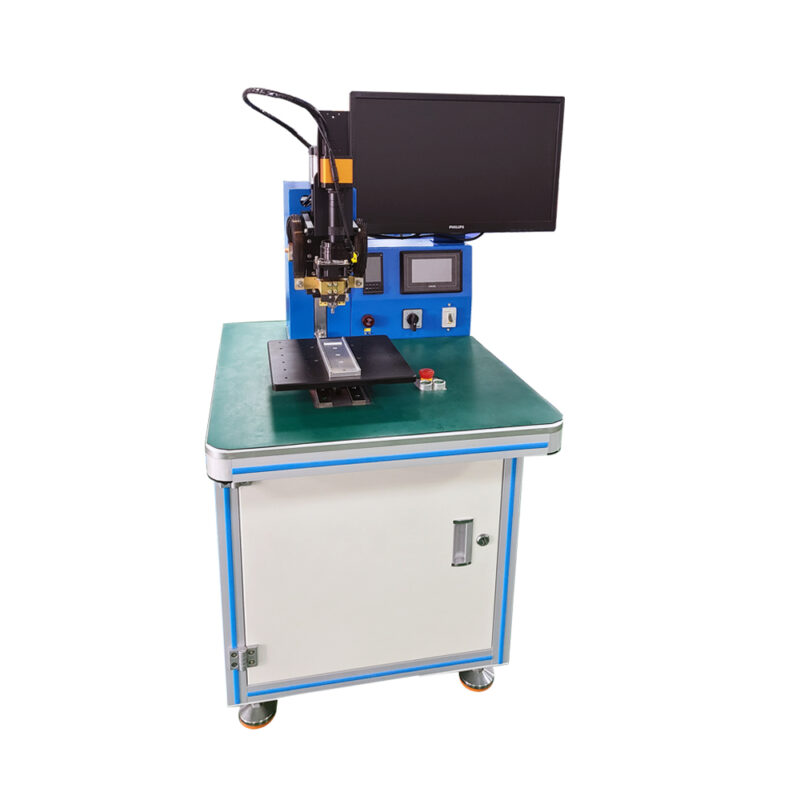

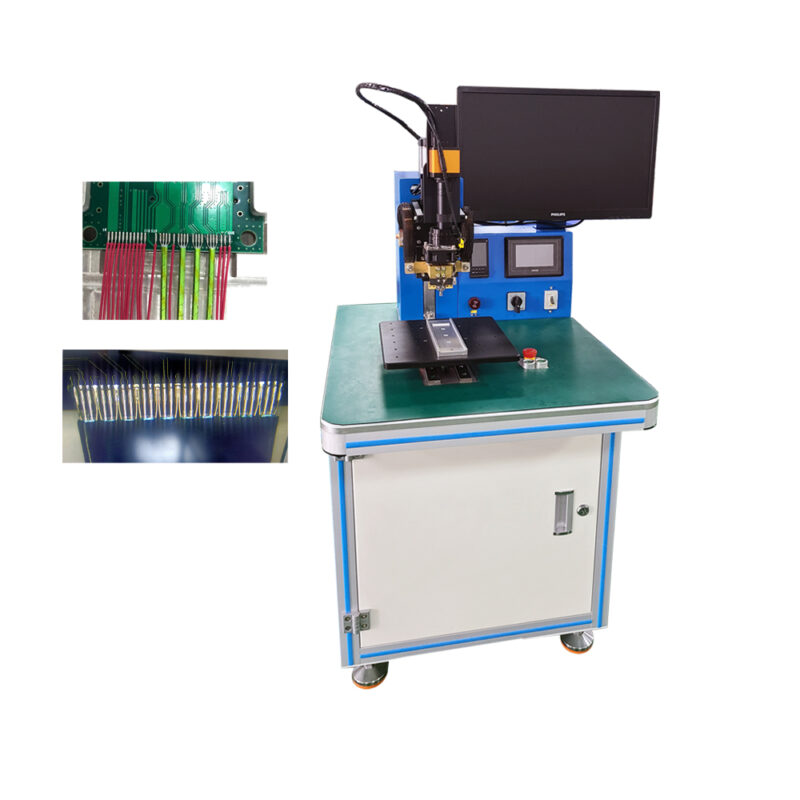

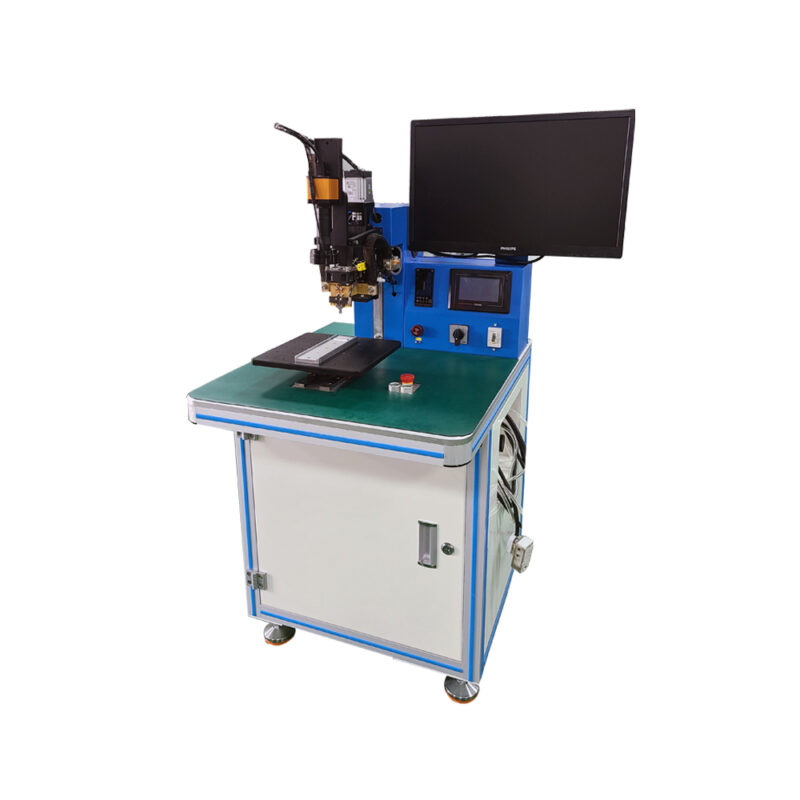

Semi-Auto soldering machine long PCB Solder Pulse Heating Soldering Machine with CCD Display
Features:
High precision soldering machine.Apply to PCI-E3.0, PCIE 4.0 FPC, FFC and PCB soldering
High speed cable, QSFP, QSFP+,high precision flat cable soldering
Technical Data
| Parameter | Specification |
|---|---|
| Model | MC302 |
| Pressure | 0.02-0.8MPa adjustable |
| Hold Time | 1-100S |
| Preheat Time | 1-25/section |
| Working Size | 250*250mm |
| Working Pressure | 0.4-0.8MPa |
| Temperature Range | 0℃-450℃ |
| Temperature Accuracy | ±3℃ |
| Temperature Quantity and Range | Part 8 (including start/separation temperature) |
| Working Efficiency | 400-600pcs/hour |
| Working Environment | 0-40℃, humidity 20%-95% (non-condensing) |
| Machine Dimensions (L*W*H) | 810mm (L) x720mm (W) x1300mm (H) |
| Machine Weight | 130Kg |

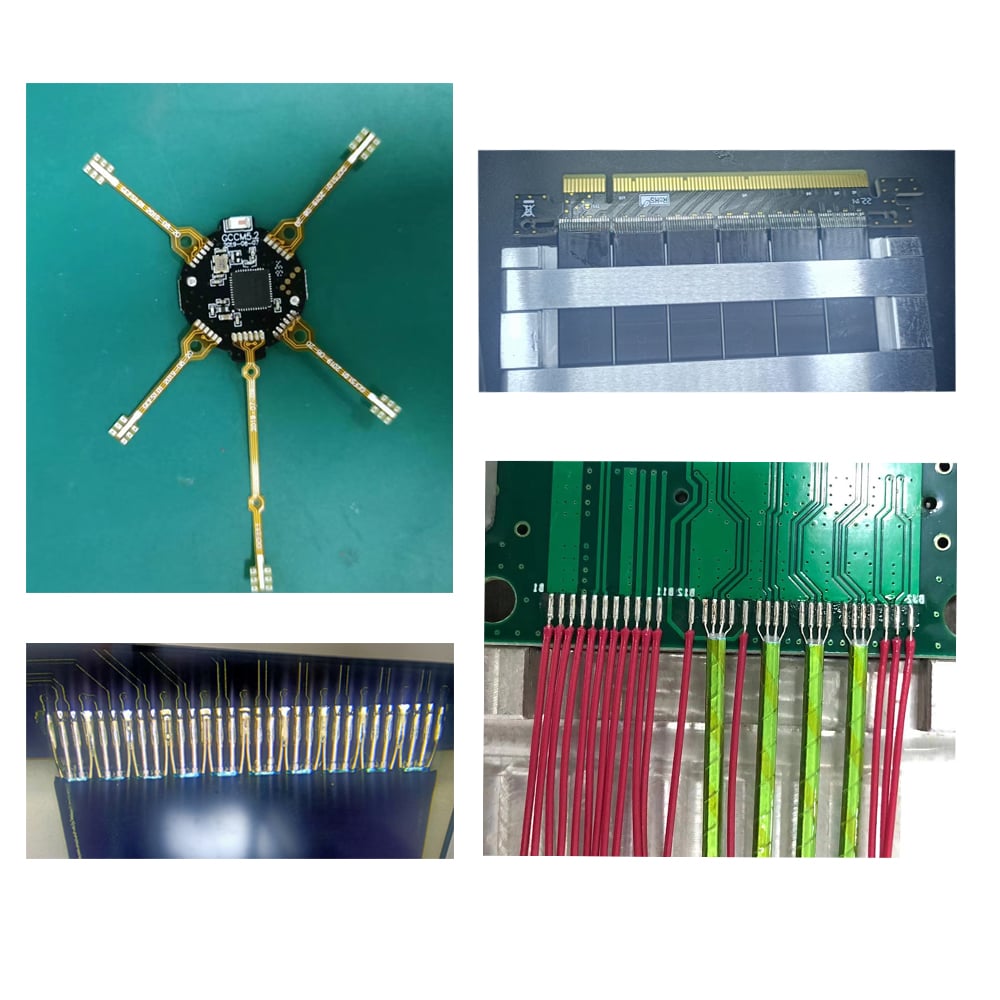

Application
