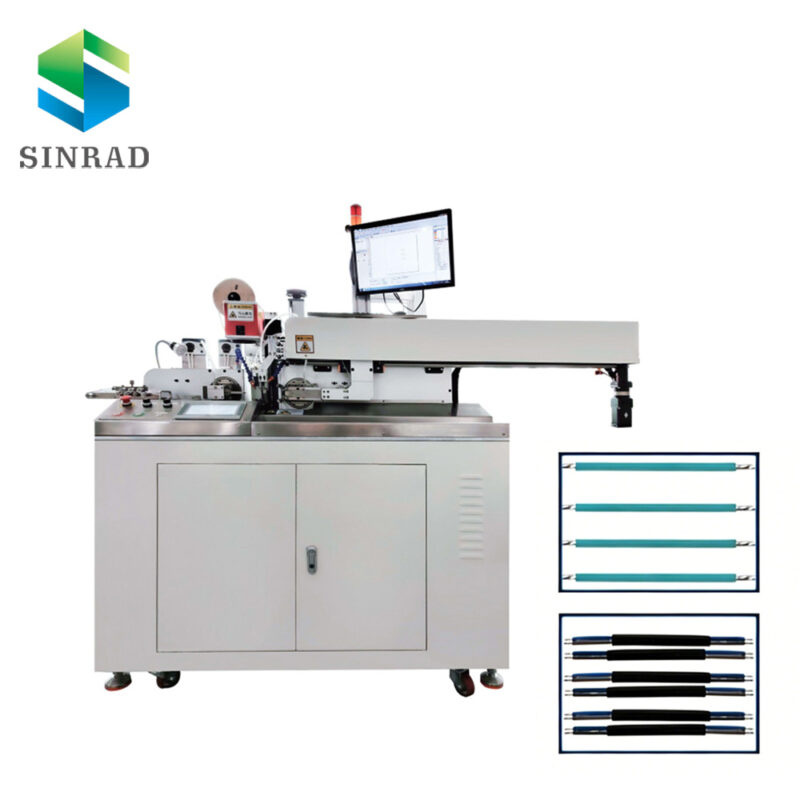

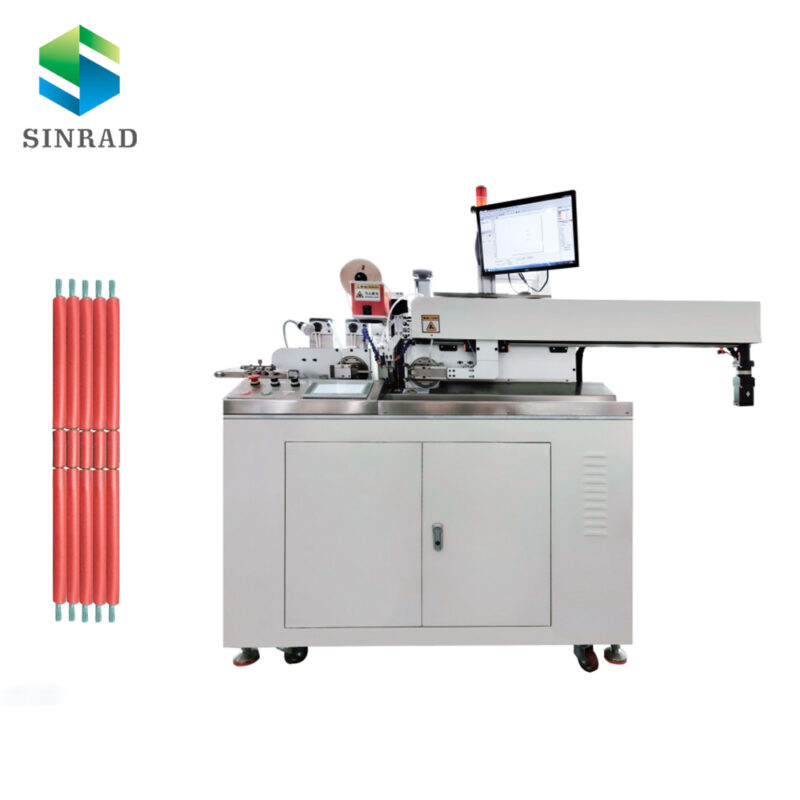

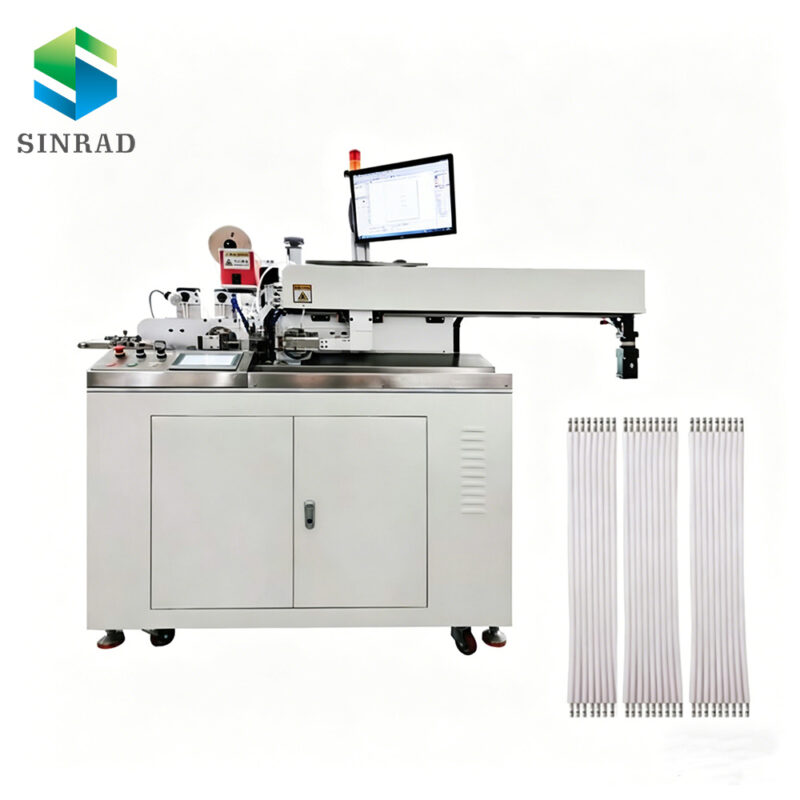

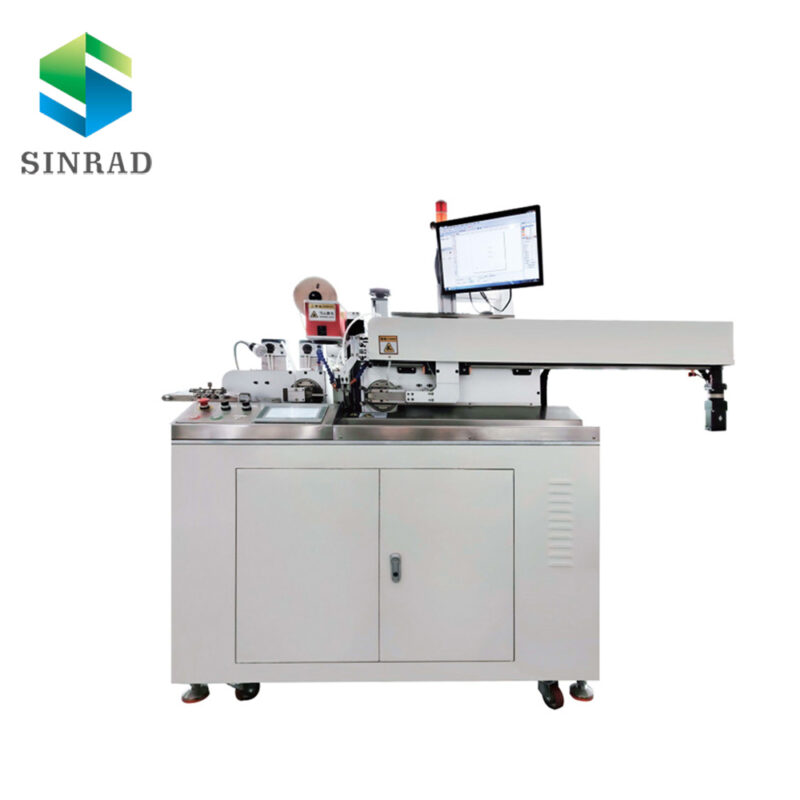

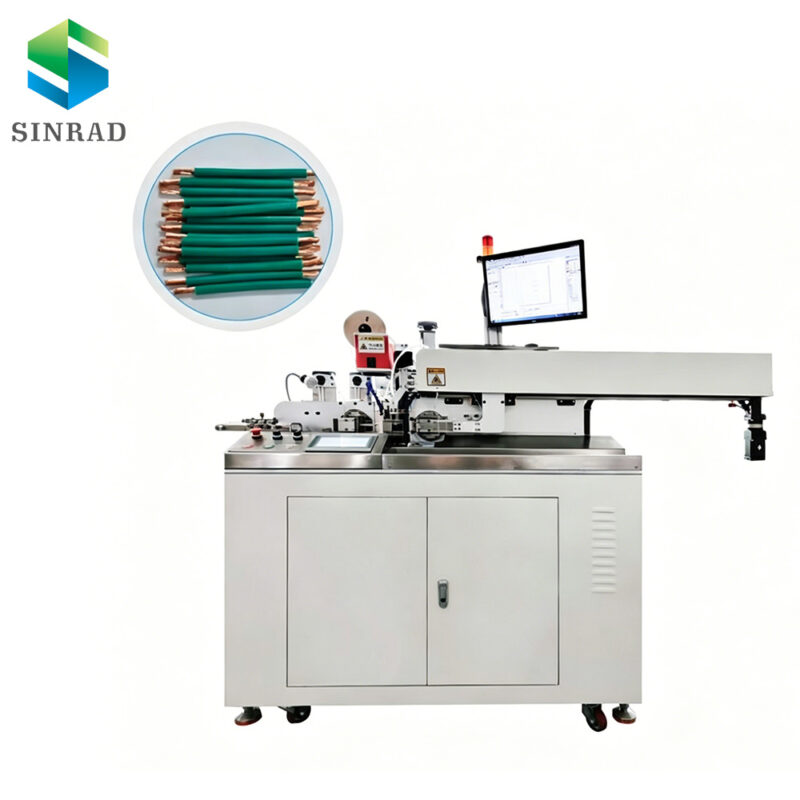

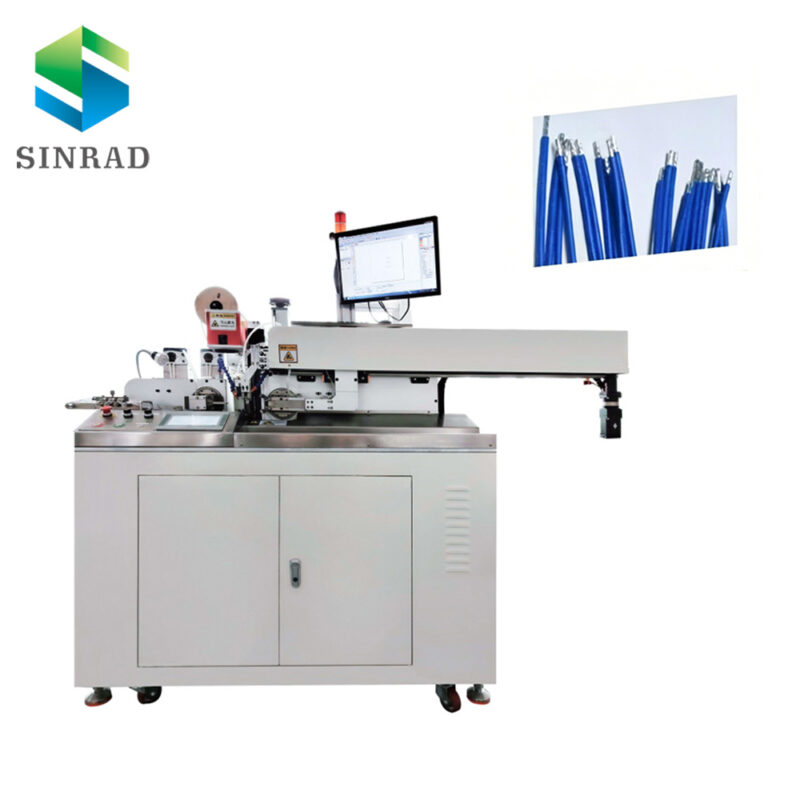

Full Automatic Five Wires Cutting Laser Stripping and Tinning Machine
Our full automatic five wires laser cutting, stripping and tinning machine is specially designed for multi-core wire harness production. It can process five wires simultaneously to greatly boost your production throughput.

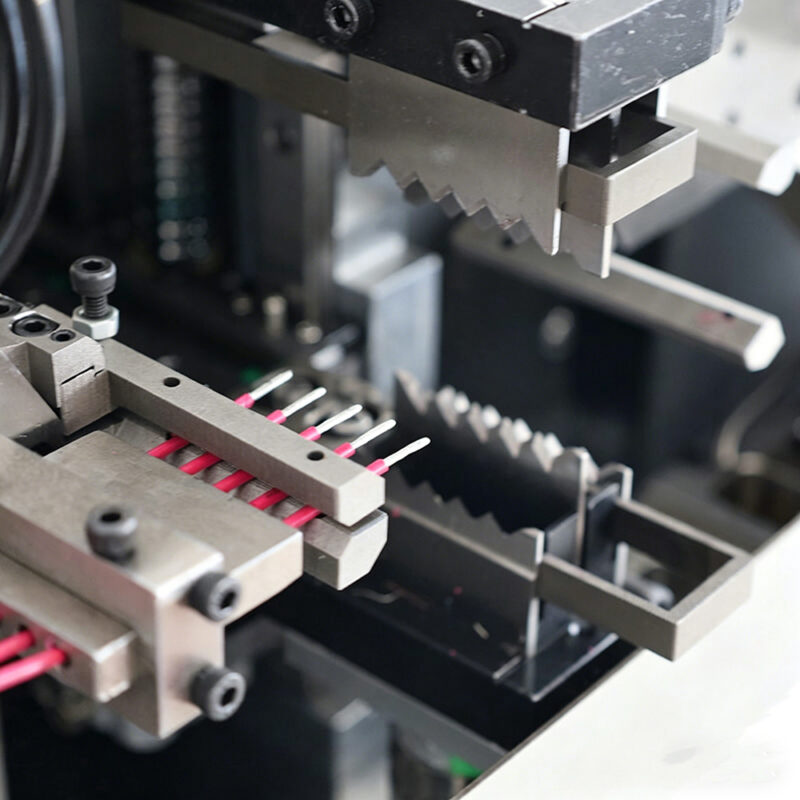

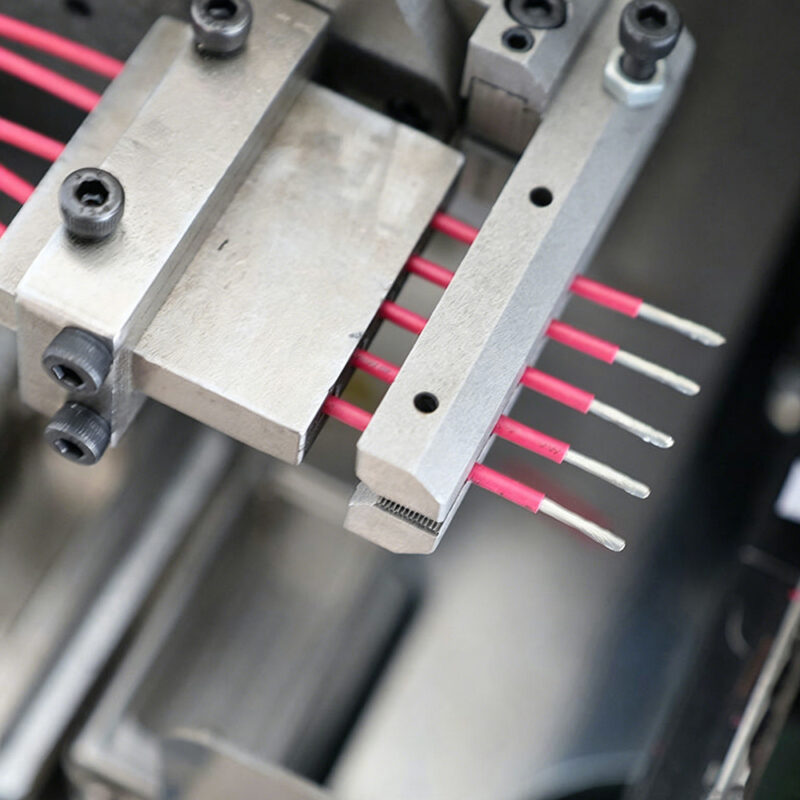

This machine adopts dual-head laser stripping technology. Laser stripping precisely removes cable insulation without damaging the inner copper conductor, and effectively prevents outer sheath loosening during mass production.

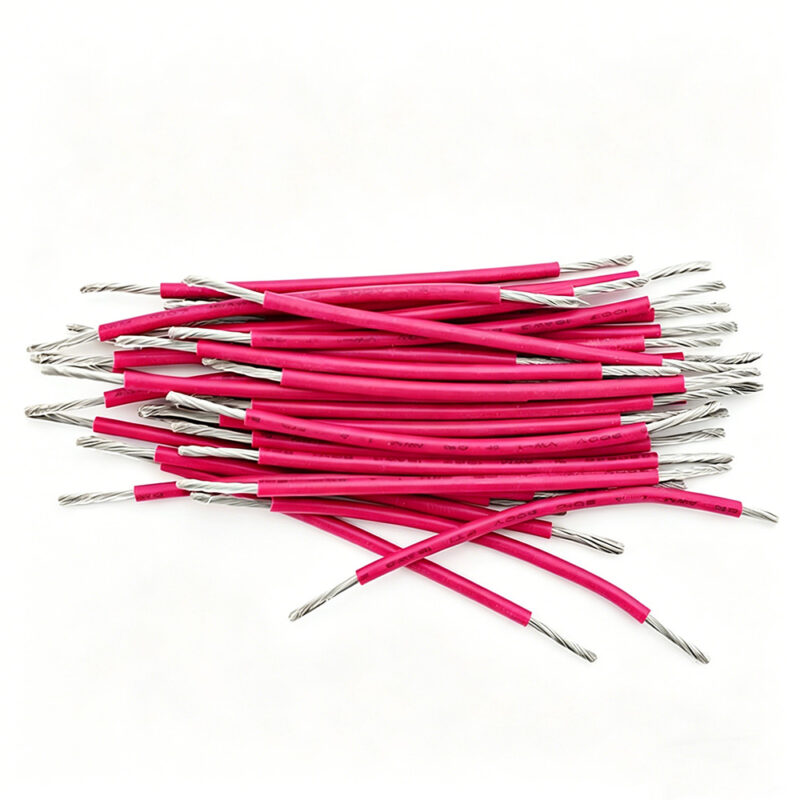

Built with dual-head tinning function with flux feeding, it completes wire stripping and tinning in one station. The wire cutting length and stripping length are fully adjustable to fit different cable specifications.
The equipment features simple mechanical structure and program storage function. Operators can save multiple wire programs for quick product changeover. The LCD touch screen displays all laser operation parameters, making operation simple and easy to learn. It supports button start control and standard air hose connection for stable workshop operation.
Capture
| Model | SR-5030A |
| Cutting length | 35-1000mm |
| Stripping length | 4-12mm |
| Power supply | AC220V 50/60HZ |
| Tinning length | 2-15mm |
| Functions | multi-wire fixed-length cutting, single/double-end laser stripping, single/double-end twisting and tinning. |
| Laser power | 30W CO2 Laser |
| Applicable wire | 18-30AWG |
| Air pressure | 0.6-0.8Mpa |
| Dimensions | 2050*930*1830mm |
Application

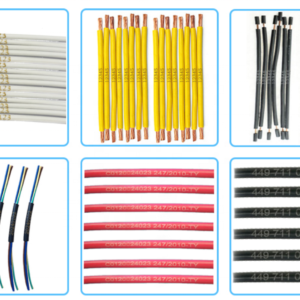

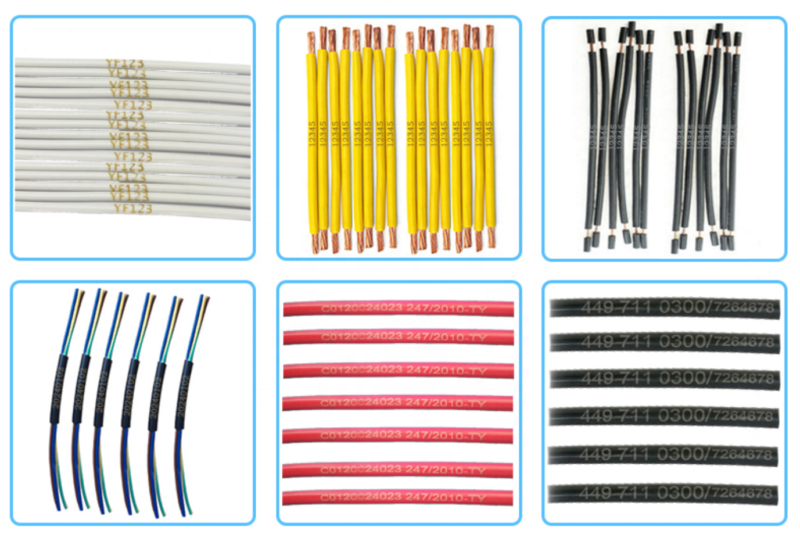

This multi-wire processing machine is widely used for USB cables, electronic wiring harnesses, sensor wires and small power cables in electronics assembly factories.
Key Features
1. Process five wires at the same time for higher efficiency
2. Dual-head laser stripping, no damage to inner core, avoid sheath loosening
3. Dual-head tinning with automatic flux adding
4. Adjustable stripping length and wire cutting length
5. Program storage for flexible batch production
6. LCD display for simple parameter setting
7. Button start and pneumatic air hose connection
FAQ
Q: What wire types can this laser stripping tinning machine handle?
A: It works for electronic wires, USB wires and small harness cables with applicable wire gauge range.
Q: Can we customize wire processing parameters?
A: Yes, cutting length, stripping length and tinning depth are adjustable via touch screen.
