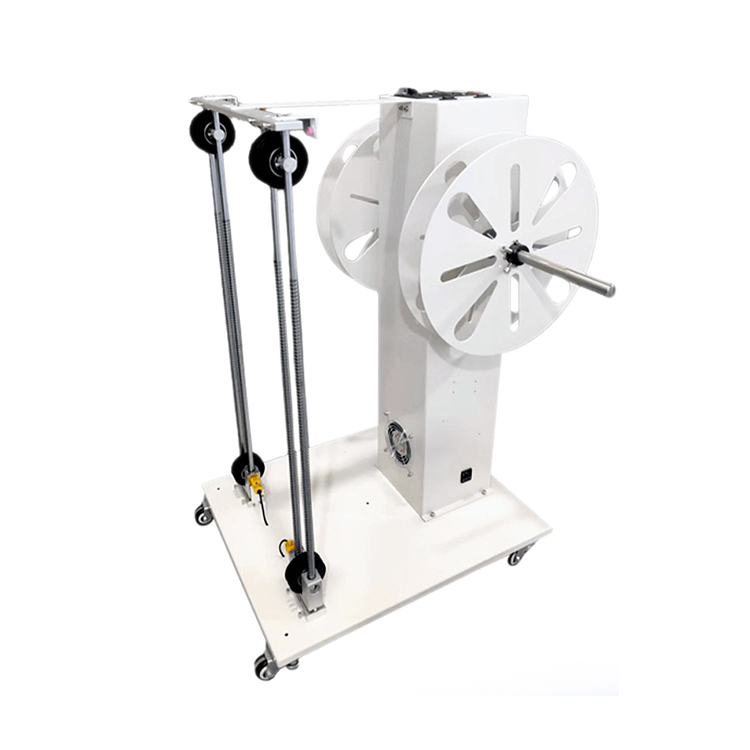

Dual wire feeder / Dual cable feeder / Dual wire prefeeder/ Double wire feeder
| Parameter | Specification |
|---|---|
| Model | SR-3002 |
| Shaft diameter | 20mm |
| Maximum loading weight | 15KG x 2 |
| Motor Power | 120W x 2 |
| Voltage | AC220V 50/60HZ |
| Weight and size | 50KG, 920x650x1050mm |
| Diameter of cable reel | Max 400mm |
| Width of cable reel | 60-260mm |
| Feeding speed | 1m/s |
| Packing | Wooden case |
Features:
(1)This machine is an automatic wire feeding machine, which is used in conjunction with a fully automatic computer wire stripping machine. You only need to fix the whole coil of wire on the pay-off reel, start the motor when the wire needs to be fed.
(2)Forward and reverse rotation control.
(3)It will automatically stop when the wire is slack to a certain degree.
(4) This machine is compact in design and convenient in setting and clamping the spool, which can greatly reduce labor intensity and improve production efficiency.
