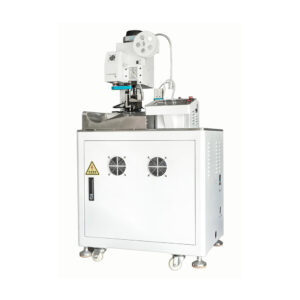

Automatic Terminal Crimping Machine SR-CT01 For Wire Harness Single End Terminal Crimping
Brief function description：
Automatic Wire Cutting And Stripping
Automatic Termnial Feeding And Crimping
Features:
- Imported original parts, completely cut off the wires, stripping, terminal pressing, etc. Accurate, easy to operate, stable performance
Cutter depth is adjusted by computer - The whole stripping length is directly set by the menu of touch panel
- Fast technical performance adjustment, short adjustment time, easy operation
- Suitable for horizontal, straight OTP molds,support customize machine suitable 40mm stroke European applicator
- Save more labor for enterprises
Technical Data
| Parameters | Specification |
| Model | SR-CT01 |
| Display | Touch panel |
| Function | cut, strip, half-strip, twist(option), single end crimping |
| Production rate | less than 100mm, 4000~6000pcs |
| Stripping length | 0~10mm |
| Apply wire | AWG16~AWG32（Support Customize） |
| Cutting tolerance | ±1mm+L(cut length)*0.2% |
| Cutting Length | 20-9999mm |
| Processing efficiency | less than 100mm, 4000~6000pcs |
| Crimping force | 2T~3T(option) |
| Detector | wire on or not, crimp abnormal, air lower, stripping wire dectective |
| Air supply | 0.5~0.7MPA |
| Power | AC 220V |
| Applicator | OTP,or customize European |
| Available terminal | Continuous vertical or horizonal terminal |
| Machine Dimensions(L*W*H) | 600 *700 *1500mm |
| Machine Weight | 220Kg |
