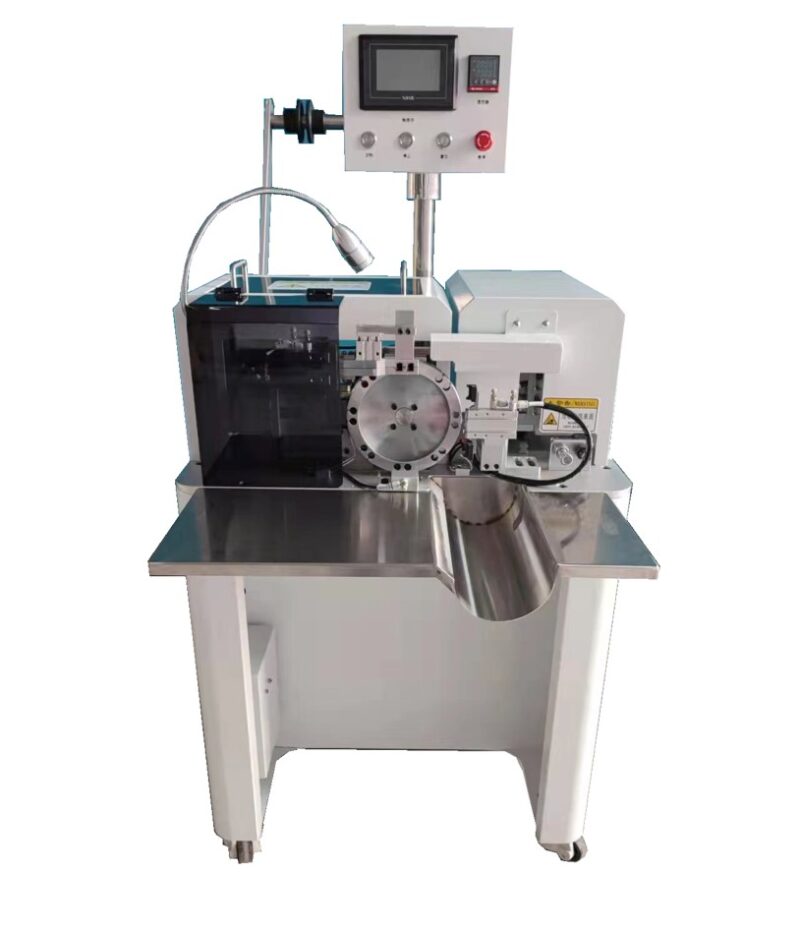

This machine is suitable for wearing heat shrinlable sleeves onto AC, DC cables and other electronic wire ends, as well as cable terminals.
Features:
- This machine can automatically cut heat shrinkable tubing into required length.
- The operator inserts the wire end into the guide hole, stepping on the foot switch, and the device will heat shrink the tubing automatically.
- The shrinkable tubing length, specifications, and heat shrink temperature can be adjusted by changing settings and replacing corresponding accessories.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SR-H220 |
| Machine Dimensions(L*W*H) | 740x640x1270mm |
| Machine Weight | 100KG |
| Display | 7 inch multi-point capacitive screen |
| Power supply | AC220V, 50/60HZ |
| Support tube length | 5-40mm (support customize) |
| Support sleeve OD | 1.5-6mm standard sleeve (flat sleeve customize) |
| Cutting length accuracy | ± 1mm |
| Production efficiency | 1000pcs/H (depend on tube size) |
| Machine wattage | 2000W |
| Printer | UV laser or ribbon printer (customize) |
| Air pressure | 0.5-0.6MPA |
| System control mode | PLC/ Industrial controller/PC software |
| Heating temperature | 0°C-380°C (adjusted by temperature controller) |
